Specification

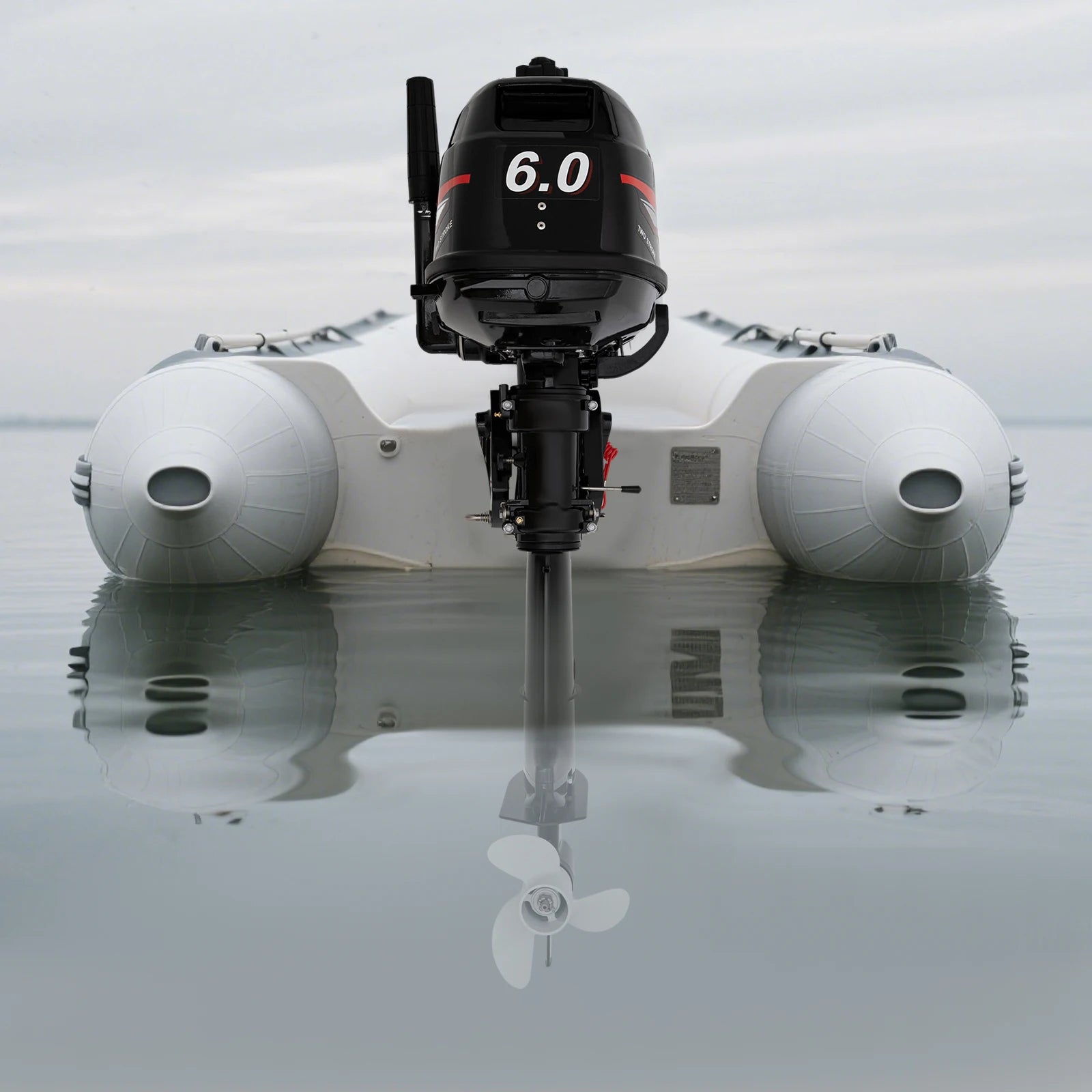

Model: Two Stroke 6HP
Engine Position: Outboard
Displacement: 102CC
Cylinder:1
Max. Output: 4.4kw
Full Throttle Operating Range (rpm): 4500-5500
Idling Speed: 1000±100r/min
Gear Positions: F-N-R
Ignition System: CDI
Starting System: Manual Start
Trim and Tilt System: Manual Tilt
Control System: Tiller Control
Cooling Method: Water-cooling
Recommended Outboard Engine Oil: 2-Stroke Outboard Engine Oil
Recommended Gear Oil: Professional Gear Oil
Gear Oil Volume: 195ml(6.6 fl.oz.)(Cut off by Pressing the Button on the Carburetor)
Thrust: 300-750kg/661-1653lbs, Speed: 20-10 km/h ( Depending on the Environment, Water, Hull Load) The heavier the Load, the Slower the Speed.
Spark Plug: 25.0Nm(18.4 ft-lb) (2.55 kgf-m)
Engine Oil Discharge Bolt: 18.0Nm(13.3 ft-lb) (1.84 kgf-m)
Gear Ratio: 2.08 (27:13)
Mixed Rating: Fuel : Oil (50:1)
Standard Fuel Tank Capacity: 12L Within 2.5L
Bore×Stroke: 5.5*4.3cm/2.17*1.69"

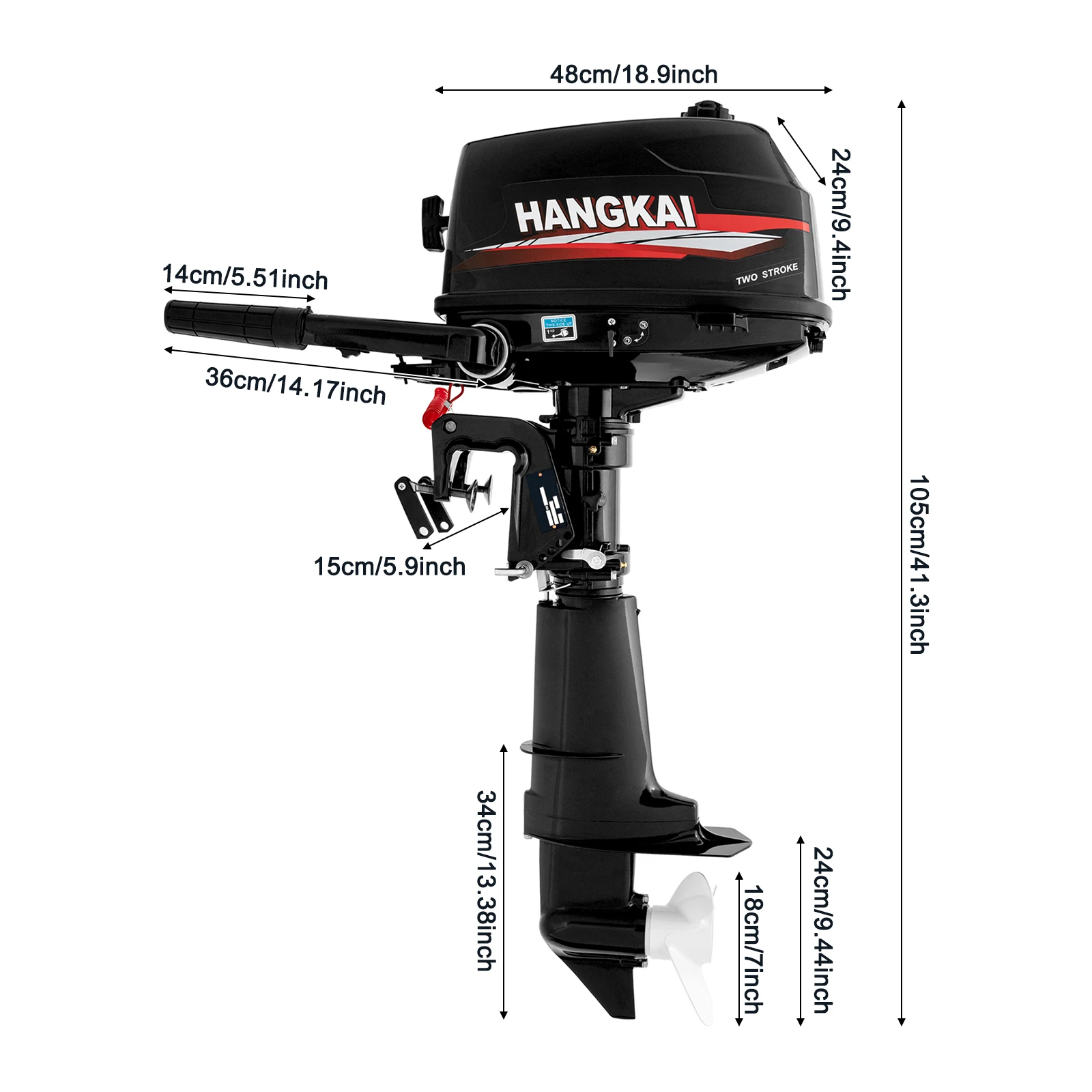

Dimensions: 49*32*106cm/19.29*12.6*41.73"
Package Size: 112*62*38.5cm/44.09*24.41*15.16"
Net Weight: 20.74kg/ 45.72lbs
Gross Weight: 25.9kg/57.1lbs

Application

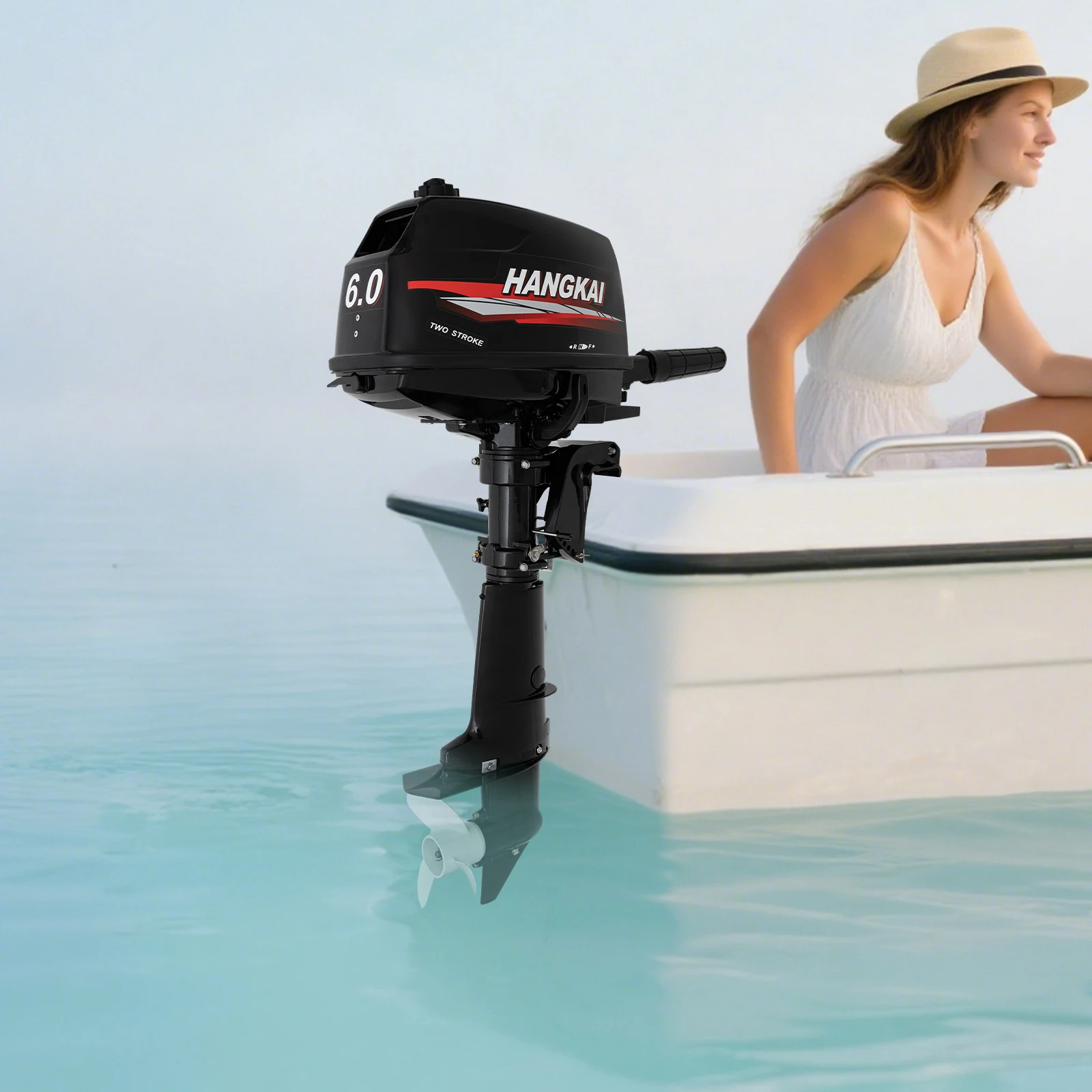

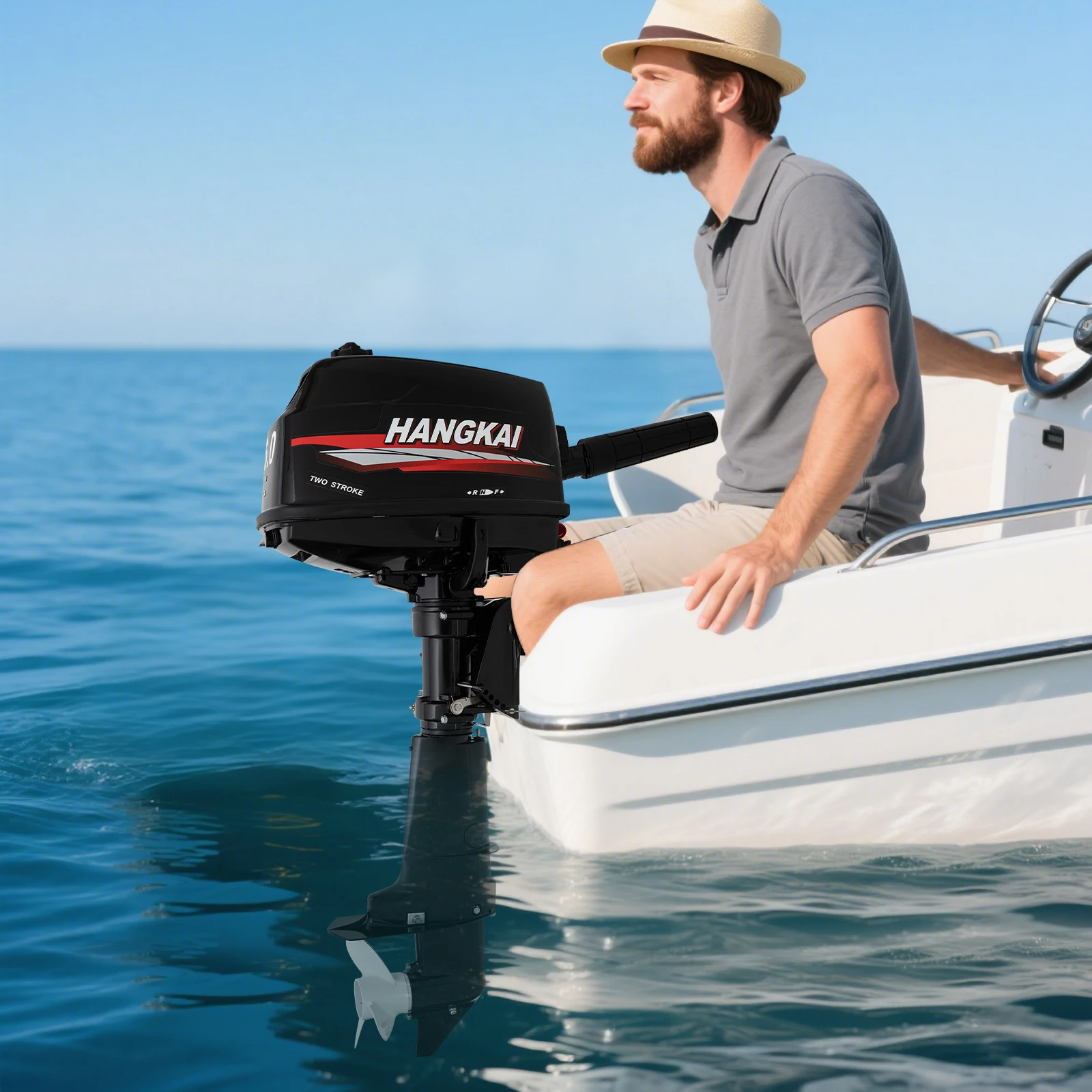

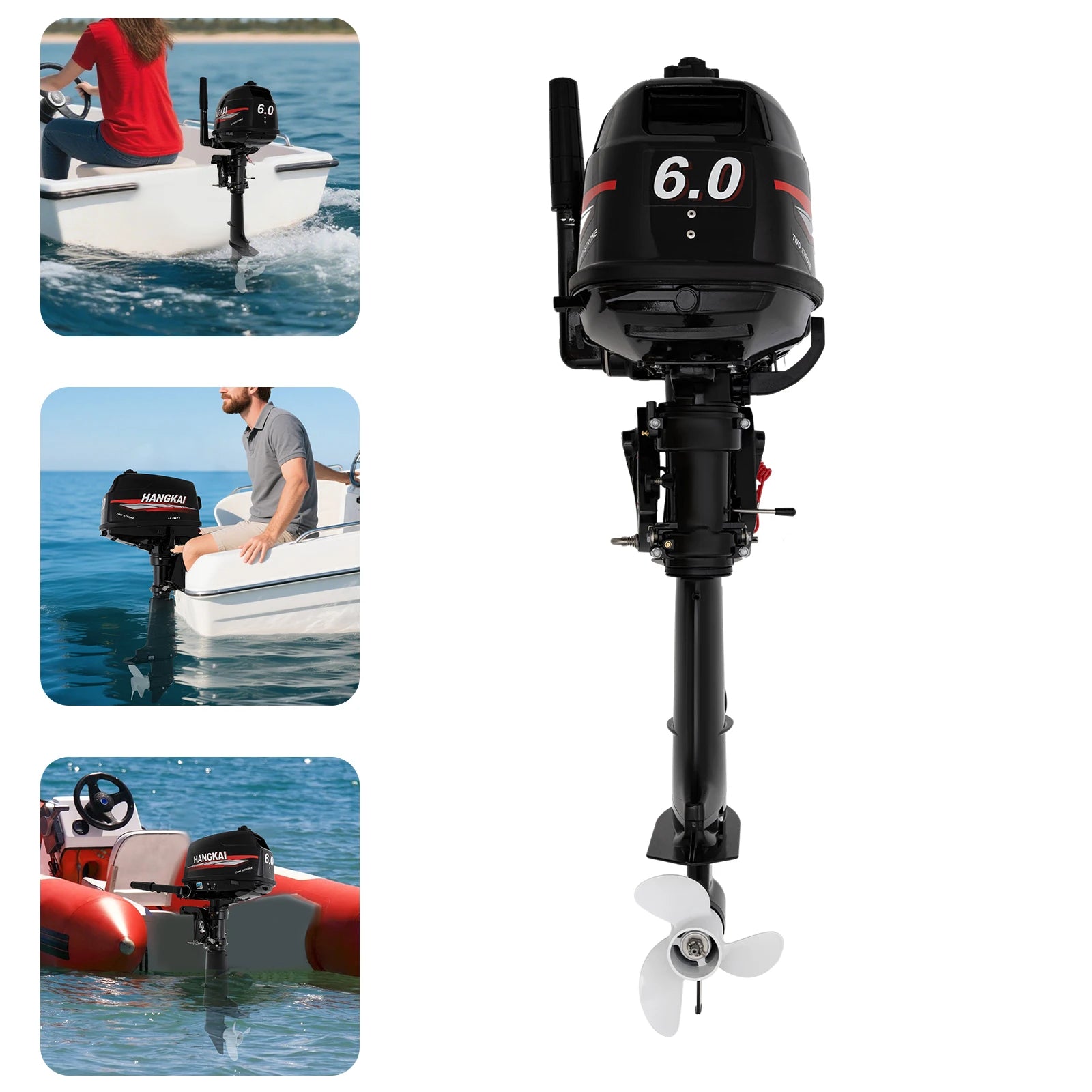

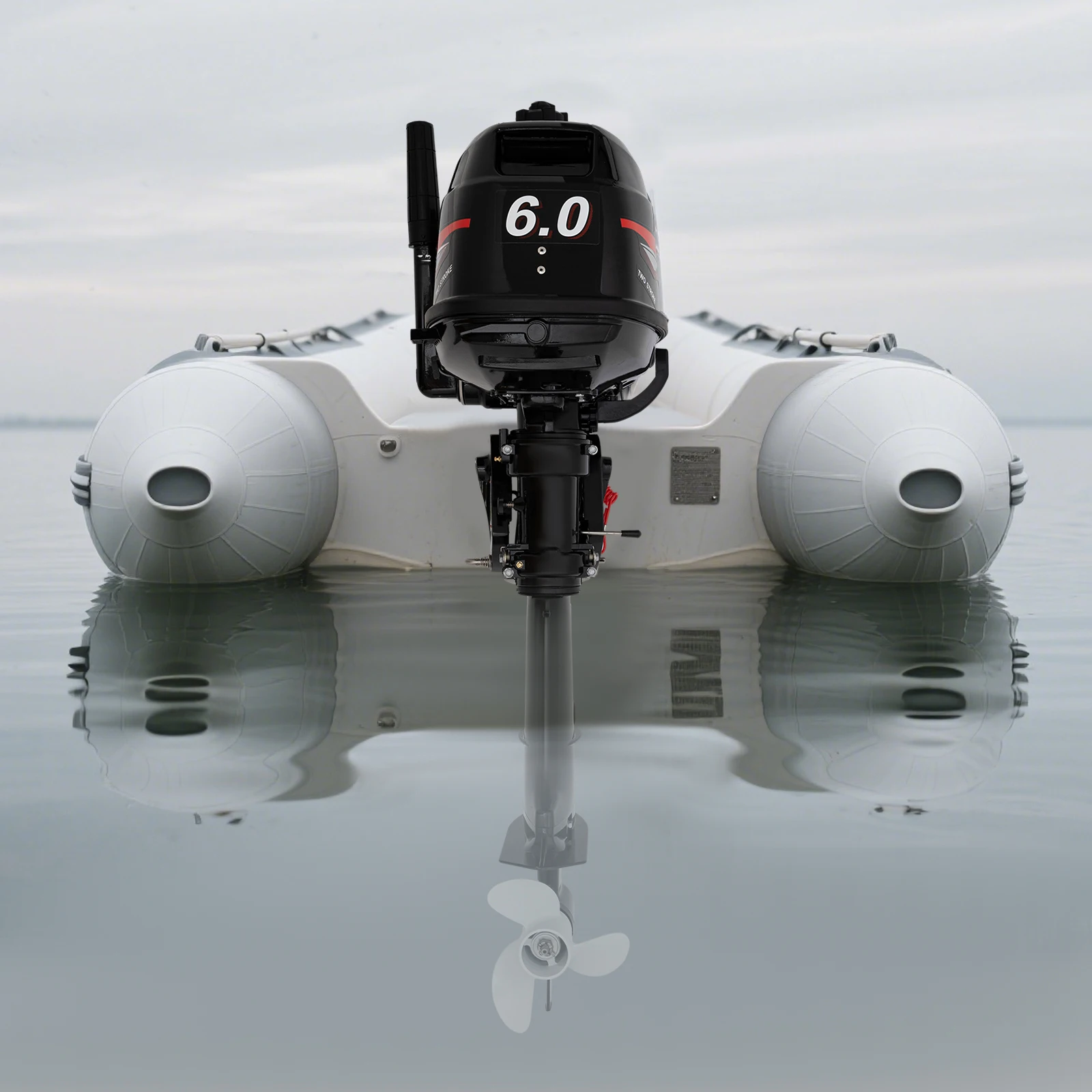

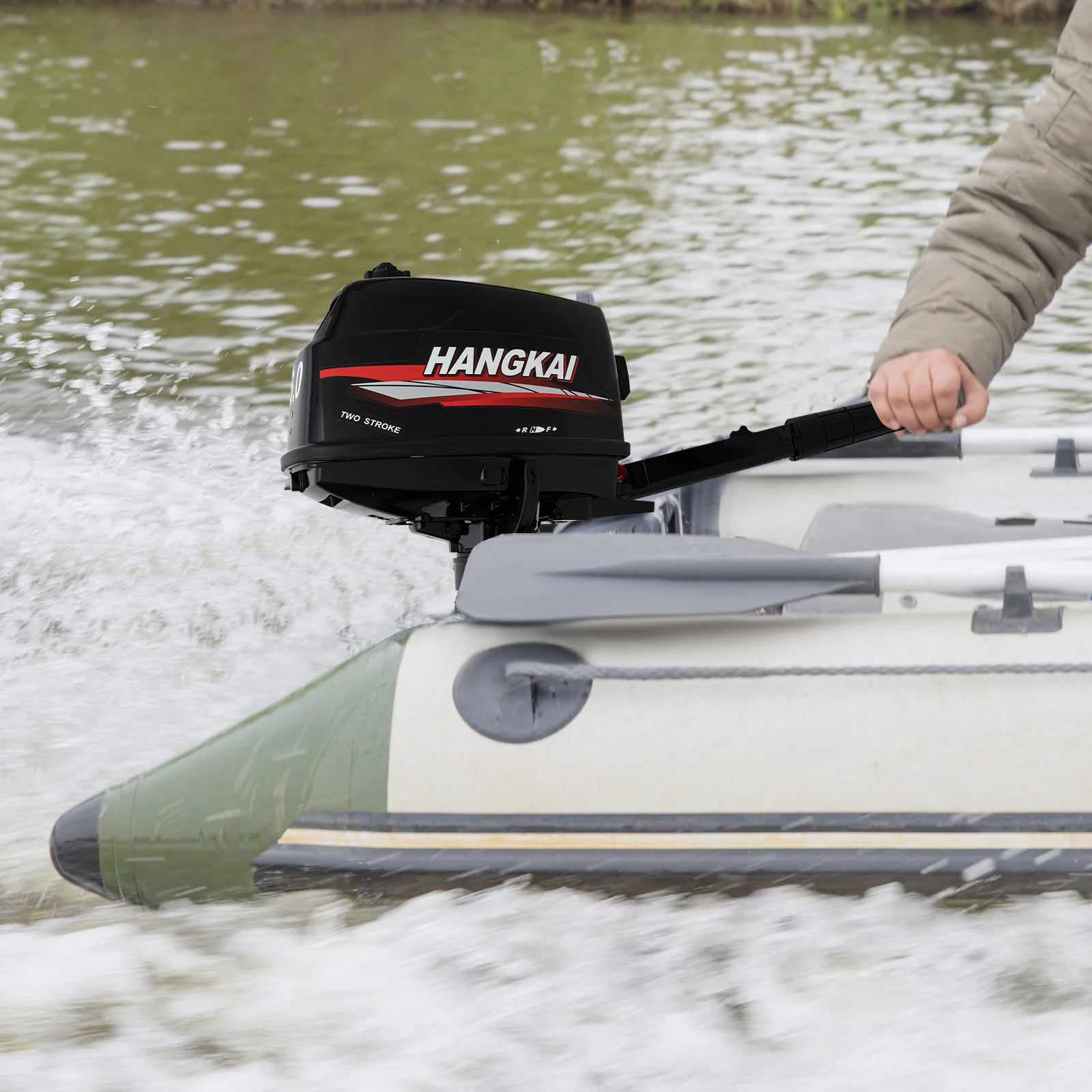

The outboard motor is suitable for a variety of small watercraft, such as fishing boats, dinghies, and inflatable boats.

Package Included

1x Outboard Motor
1x Funnel
1x Fuel Oil Mixing Bottle
1x Water Pump Impeller
1x Split Pin
1x Flameout Roop
1x Start Roop
1x Installation Tool Kit
1x User Manual
All Accessories for Assembly

Notes

1.Please note that this product is manual available in English, German and French, please contact customer service for more information.
2.The item does not have a certificate of origin. Please do not place an order if you mind.
3.Please read the attached manual completely before use. And pay particular attention to the safety instructions included.
4.Add gear oil to the gears before using the motor and change the gear oil after the break-in period (10 hours). If you don't know how to use it, please contact us anytime. Also, our outboard motor does not contain gear oil, so please prepare it yourself.
5.Do not touch or disassemble electrical parts during start-up or operation.
6.Don't start the motor on the bank. If you want to test the motor, it should be done in the river.
7.Don't use the motor when no water comes out of it, and then check whether the pump impeller or the water outlet is blocked.
8.Always disconnect power when replacing the propeller, removing debris around the propeller, charging batteries, transporting a boat, or when the motor is not in use.
9.Please wash the motor with freshwater, so that it can greatly reduce the possibility of corrosion.
10.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
11. Two-stroke air-cooled engines must use TCW-2 engine oil, which must be specifically designed for outboard engines.

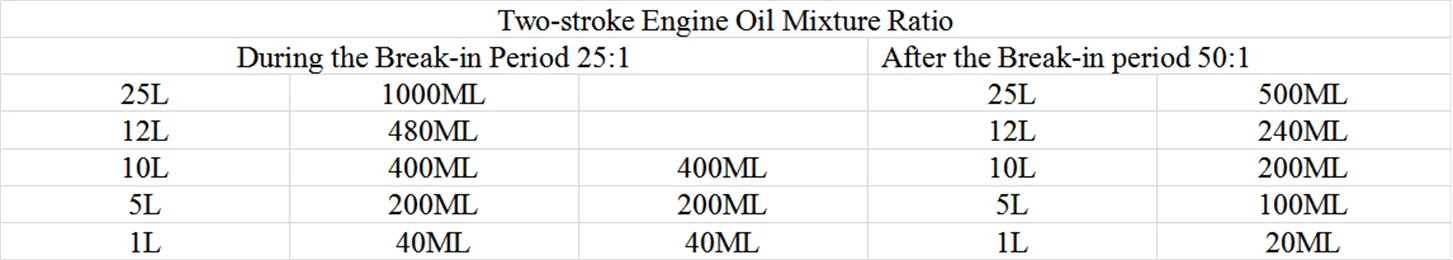

12. Fuel mixture ratio: 25:1 for the first 50 hours, 50:1 after 50 hours.
13. Two-stroke outboard engines must use a mixture of 92# gasoline and two-stroke engine oil.
14. During the break-in period, the volume ratio of gasoline to oil is 25:1.
15. After the break-in period, the volume ratio of gasoline to oil is 50:1.
16. Important note: Gasoline and oil must be pre-mixed and thoroughly stirred before being poured into the fuel tank.
17. The outboard motor must be started in water, please do not start the engine on land.
18. When starting the engine, loosen the vent screw on the fuel tank cap counterclockwise.
19. When starting the outboard motor, insert the emergency stop rope and secure the other end to your wrist or belt
20. The break-in period lasts approximately 10 hours or one month. Please avoid operating the engine at high throttle during the break-in period.
21. After the break-in period, replace the gear oil. The second replacement should be performed after approximately 100 hours or six months.
